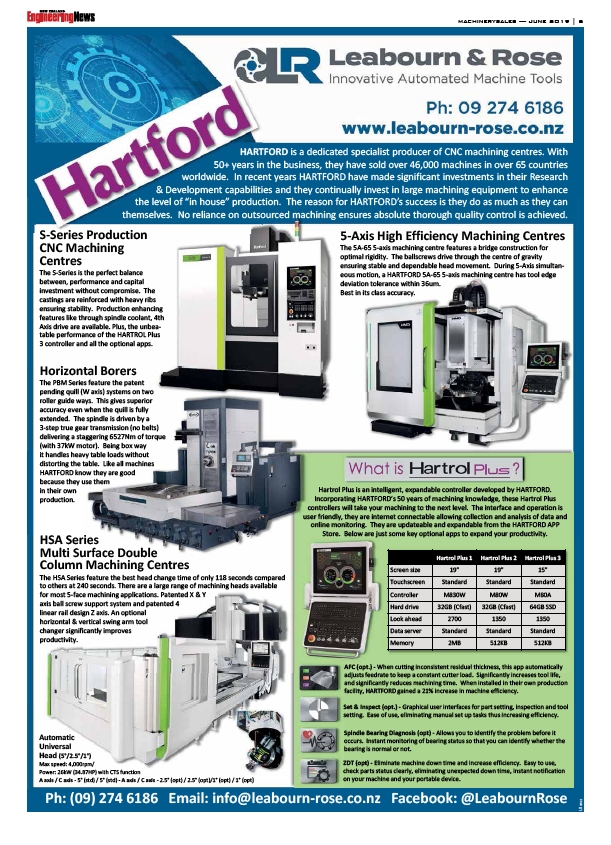

HARTFORD is a dedicated specialist producer of CNC machining centres. With
50+ years in the business, they have sold over 46,000 machines in over 65 countries
worldwide. In recent years HARTFORD have made significant investments in their Research
& Development capabilities and they continually invest in large machining equipment to enhance
the level of “in house” production. The reason for HARTFORD’s success is they do as much as they can
themselves. No reliance on outsourced machining ensures absolute thorough quality control is achieved.
5-Axis High Efficiency Machining Centres
The 5A-65 5-axis machining centre features a bridge construction for
optimal rigidity. The ballscrews drive through the centre of gravity
ensuring stable and dependable head movement. During 5-Axis simultaneous
motion, a HARTFORD 5A-65 5-axis machining centre has tool edge
deviation tolerance within 36um.
Best in its class accuracy.
Large format or Tandem Press Brakes.
S-Series Production
CNC Machining
Centres
The S-Series is the perfect balance
between, performance and capital
investment without compromise. The
castings are reinforced with heavy ribs
ensuring stability. Production enhancing
features like through spindle coolant, 4th
Axis drive are available. Plus, the unbeatable
performance of the HARTROL Plus
3 controller and all the optional apps.
Horizontal Borers
The PBM Series feature the patent
pending quill (W axis) systems on two
roller guide ways. This gives superior
accuracy even when the quill is fully
extended. The spindle is driven by a
3-step true gear transmission (no belts)
delivering a staggering 6527Nm of torque
(with 37kW motor). Being box way
it handles heavy table loads without
distorting the table. Like all machines
HARTFORD know they are good
because they use them
in their own
production.
DURMA engineering scope virtually means no limit to the size for your press brake.
Hartrol Plus is an intelligent, expandable controller developed by HARTFORD.
Incorporating HARTFORD’s 50 years of machining knowledge, these Hartrol Plus
controllers will take your machining to the next level. The interface and operation is
user friendly, they are internet connectable allowing collection and analysis of data and
online monitoring. They are updateable and expandable from the HARTFORD APP
Incorporating the superior laminated frame design significantly improves frame strength and
reduces frame distortion under the highest conceivable loads.
The DURMA tandem machines can work as two independent cells with individual crowning or at
HSA Series
Multi Surface Double
ColumnMachining Centres
The HSA Series feature the best head change time of only 118 seconds compared
to others at 240 seconds. There are a large range of machining heads available
for most 5-face machining applications. Patented X & Y
axis ball screw support system and patented 4
linear rail design Z axis. An optional
horizontal & vertical swing arm tool
changer significantly improves
productivity.
Store. Below are just some key optional apps to expand your productivity.
a push of a few buttons and adjustment span machine with full length crowning.
Hartrol Plus 1 Hartrol Plus 2 Hartrol Plus 3
Screen size 19” 19” 15”
Touchscreen Standard Standard Standard
Controller M830W M80W M80A
Hard drive 32GB (Cfast) 32GB (Cfast) 64GB SSD
Look ahead 2700 1350 1350
Data server Standard Standard Standard
Memory 2MB 512KB 512KB
AFC (opt.) - When cutting inconsistent residual thickness, this app automatically
adjusts feedrate to keep a constant cutter load. Significantly increases tool life,
and significantly reduces machining time. When installed in their own production
facility, HARTFORD gained a 21% increase in machine efficiency.
Set & Inspect (opt.) - Graphical user interfaces for part setting, inspection and tool
setting. Ease of use, eliminating manual set up tasks thus increasing efficiency.
Spindle Bearing Diagnosis (opt) - Allows you to identify the problem before it
occurs. Instant monitoring of bearing status so that you can identify whether the
bearing is normal or not.
ZDT (opt) - Eliminate machine down time and increase efficiency. Easy to use,
check parts status clearly, eliminating unexpected down time, instant notification
on your machine and your portable device.
Automatic
Universal
Head (5°/2.5°/1°)
Max speed: 4,000rpm/
Power: 26kW (34.87HP) with CTS function
A axis / C axis - 5° (std) / 5° (std) - A axis / C axis - 2.5° (opt) / 2.5° (opt)/1° (opt) / 1° (opt)
